DAT modules

work as a team

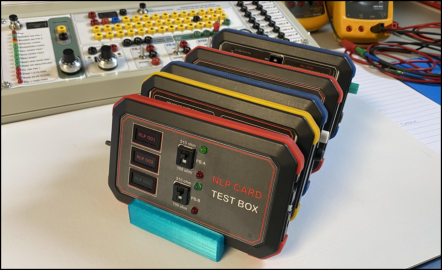

The tester contains 5 additional modules for testing multiple types of cards.

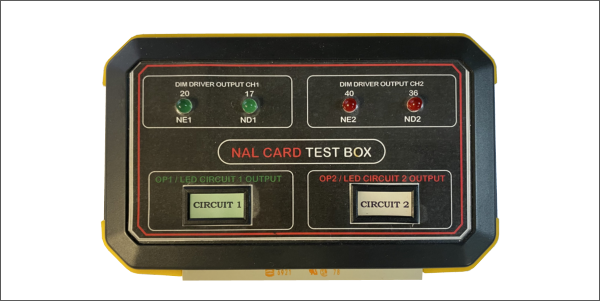

NAL Card Test Box

Signal Comparator (NAL) card

Style 2837A13G01/02/03

Style 6D30818G07

NAL cards have two test boxes. First test box check the parameters of the card (TRIP, RESET, DEADBAND)

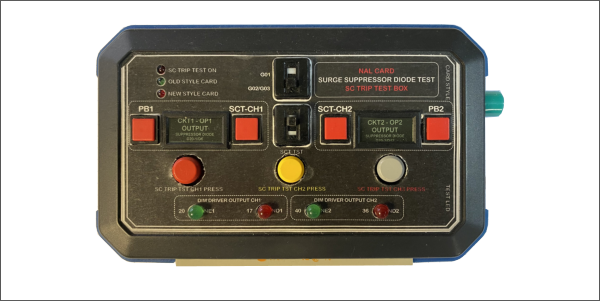

NAL Ntb2 Test Box

Signal Comparator (NAL) card

Style 2837A13G01/02/03

Style 6D30818G07

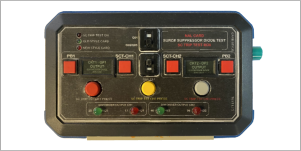

With the second test box we test the SC TRIP function and the correctness of the suppressor diode.

NCD Card Test Box

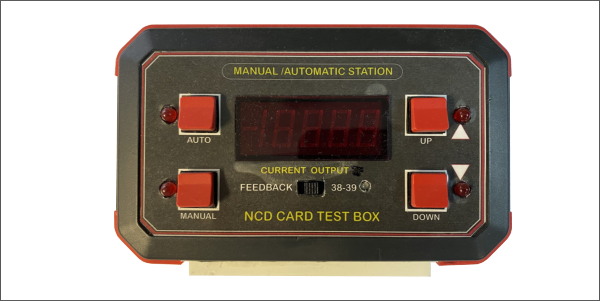

Controller Driver (NCD) Card

Style 2837A16G03

Style 6D30692

We use this module for testing NCD card That modul simulates the M / A station (manual / automatic) station.

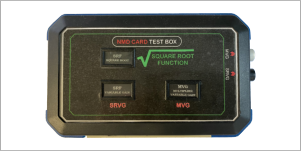

NMD Card Test Box

Multiplier/divider (NMD) card

Style 2837A19G01

Style 6D30740G01

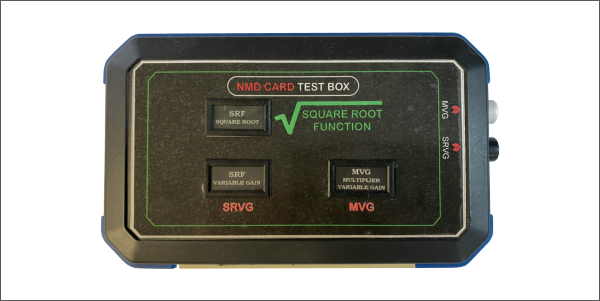

That Module has a triple function(depending on the function, it can test the square root or multiplier function)

NLP Card Test Box

Isolator and Loop Power Supply

(NLP) Card Style 2837A12G01 through G03 / new G05 - this group replaces the old groups 1,2 and 3

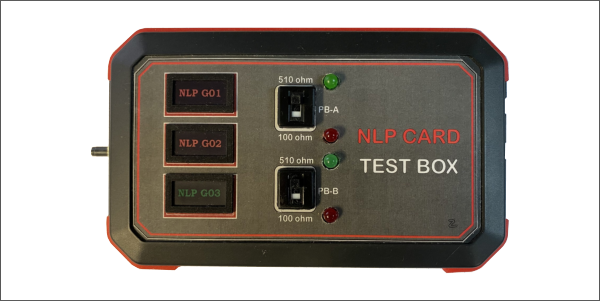

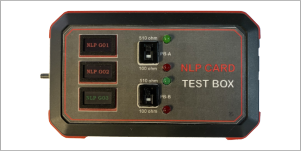

With this test box we can test all three groups of isolator cards. Depending on the jumpers, we configure NLP group 5 to the desired group and simply test it according to the instructions given by the procedure on the display.
